Behavioral_Mediator

✅ Mediator

• mediator object control how the objects interact
• objects communicate through mediator

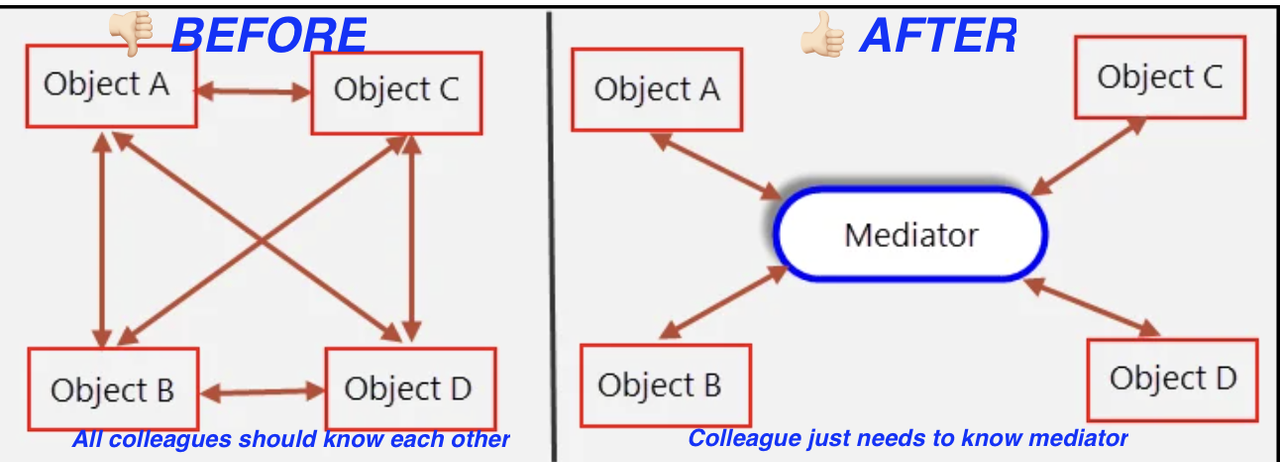

• 👎🏻 before: objects communicate directly with each other, tight coupling

• 👍🏻 after
• components only know the mediator, not each other

Component A \
Component B ---> Mediator ---> Other components
Component C /

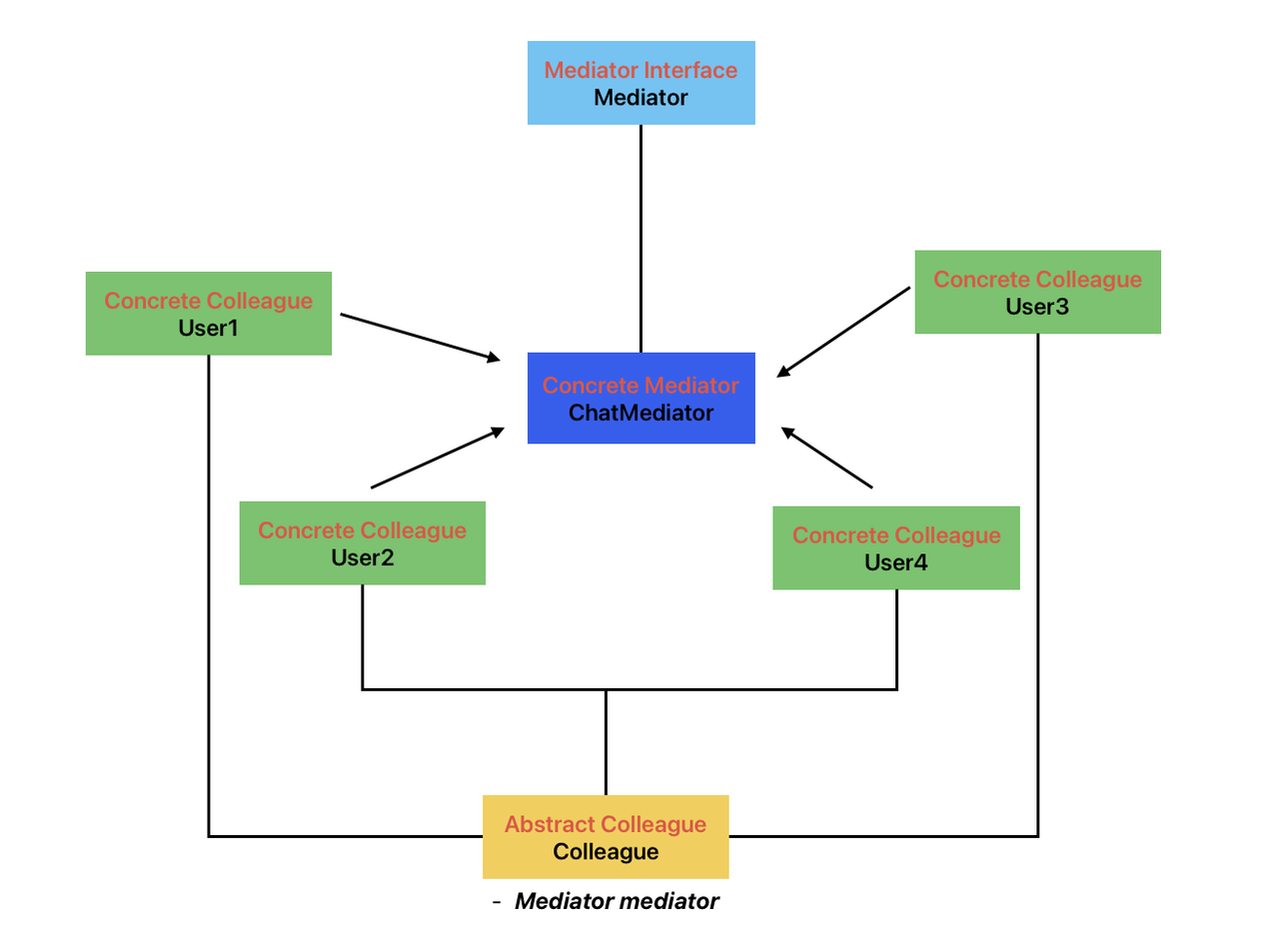

✅ Diagram

👀 Send message

✔️ Mediator Interface

interface Mediator {
    void sendMessage(String message, Colleague colleague);
}

✔️ Concrete Mediator

class ChatMediator implements Mediator {

    private User1 user1; //should have concrete colleague as field
    private User2 user2;

    public void setUser1(User1 user1) {
        this.user1 = user1;
    }

    public void setUser2(User2 user2) {
        this.user2 = user2;
    }

    @Override
    public void sendMessage(String message, Colleague colleague) {
        if (colleague == user1) {
            user2.receive(message);
        } else {
            user1.receive(message);
        }
    }
}

✔️ Abstract Colleague class(component)

• colleague does not have to know other colleagues
• only need to know the mediator

abstract class Colleague {
    protected Mediator mediator; //now colleague knows only mediator

    public Colleague(Mediator mediator) {
        this.mediator = mediator;
    }
}

• objects that communicate through the mediator

✔️ Concrete Colleage

class User1 extends Colleague {

    public User1(Mediator mediator) {
        super(mediator);
    }

    public void send(String message) {
        mediator.sendMessage(message, this);
    }

    public void receive(String message) {
        System.out.println("User1 received: " + message);
    }
}

//also user2, user3, user4...
//they all communicate via Mediator

✔️ Client

public class Main {
    public static void main(String[] args) {

        ChatMediator mediator = new ChatMediator();

        User1 u1 = new User1(mediator);
        User2 u2 = new User2(mediator);

        mediator.setUser1(u1);
        mediator.setUser2(u2);

        u1.send("Hello from User1");
        u2.send("Hello from User2");
    }
}

//User2 received: Hello from User1
//User1 received: Hello from User2

👀 Air Traffic control

• flights do not communicate with each other directly
• they talk to the control tower
• control tower mediates the communicatation among flights

✔️ Mediator Interface

• define how to communicate

interface AirportMediator {
    boolean isRunwayAvailable(); //check if runway is available
    void setRunwayAvailability(boolean status); //change runway availability
}

✔️ Concrete Mediator

• implement the coordination logic

class AirportControlTower implements AirportMediator {
    private boolean isRunwayAvailable = true;

    //override
    public boolean isRunwayAvailable() {
        return isRunwayAvailable;
    }
    //override
    public void setRunwayAvailability(boolean status) {
        isRunwayAvailable = status;
    }
}

✔️ Concrete Colleage

• objects that communicate through the mediator
• actual components

class Flight {
    private AirportMediator mediator;
    private String flightNumber;

    public void land() {
        //check if runway is available and land
    }
}

class Runway {
    private AirportMediator mediator;

    public void clear() {
        //make runway available again
    }
}

✔️ Client

public class AirportSystem {
    public static void main(String[] args) {
        AirportMediator controlTower = new AirportControlTower(); //use airportControlerMediator

        Flight flight1 = new Flight(controlTower, "KE123");
        Flight flight2 = new Flight(controlTower, "OZ456");
        Runway runway = new Runway(controlTower);

        flight1.land();
        flight2.land();
        runway.clear();
        flight2.land();
    }
}

🛠️

• when order is created, talk to email, inventory, analytics

OrderService  ----> EventPublisher (Mediator)  ----> EmailService
                                               ----> InventoryService
                                               ----> AnalyticsService

👍🏻

• lose coupling
• easier maintenance
