Structural_Bridge

✅ Bridge

• decouple abstract and implementation
• bridge can connect abstract and concrete

✅ Structure

             bridge
Abstraction  ----->  Implementor
     |                   |
RefinedAbstraction   ConcreteImplementor

• client uses Abstraction
• Implementor will be interface
• Abstraction will have Implementor as attribute
• so, Abstraction is dependent on Implementor

👀 Remote controller and Device example

Abstraction(Remote)          ----->       Implementor(Device)
     |                                            |
RefinedAbstraction(RemoteController)   ConcreteImplementor(TV, Radio)

✔️ Implementation: Device

• do not know anything about remote,
• do not know anything about abstraction

public interface Device {
    void turnOn();
    void turnOff();
    void setVolume(int volume);
    boolean isEnabled();
}

✔️ ConcreteImplemention : TV

public class TV implements Device{
  //override the methods
}

✔️ Abstraction: Remote

• Remote has Device as field
• 👉🏻 Remote is dependent on Device
• 👉🏻 Abstraction is dependent on Implementation
• 👉🏻 This is the bridge between Abstraction and Implementation

public abstract class Remote {
    private Device device; //abstraction is dependent on implementation

    protected Remote(Device device) {
        this.device = device;
    }

    public abstract void power();
}

✔️ RefinedAbstraction: BasicRemote

public class BasicRemote extends Remote{

    public BasicRemote(Device device) {
        super(device);
    }

    @Override
    public void power() {
        if(device.isEnabled()){
            device.turnOff();
        }else{
            device.turnOn();
        }
    }
}

✔️ Client code

Device tv = new TV();
Remote basicRemote = new BasicRemote(tv);
basicRemote.power();

👍🏻

• can create as many Abstraction(remote controller) class without interrupting Implementation
• can create as many Implementation(devices) class without interrupting Abstraction

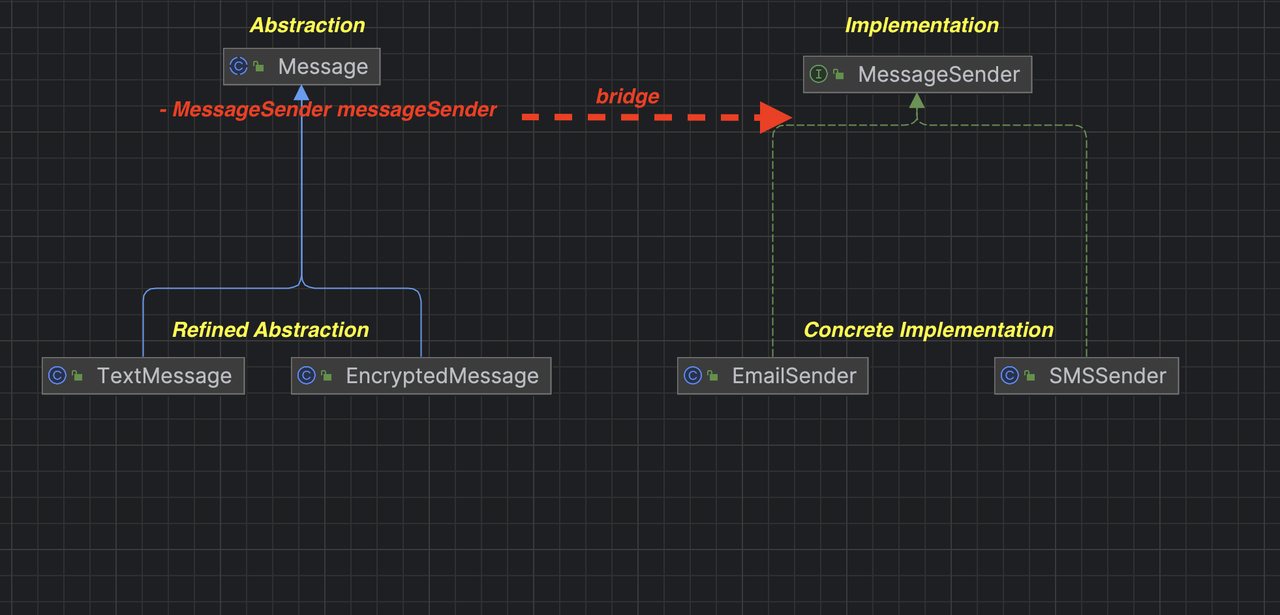

👀 MessageSender exmaple

✔️ Implementation: MessageSender

public interface MessageSender {
    void sendMessage(String message);
}

✔️ ConcreteImplemention : EmailSender, SMSSender

public class EmailSender implements MessageSender{
    @Override
    public void sendMessage(String message) {
        System.out.println("Email");
    }
}

public class SMSSender implements MessageSender{
    @Override
    public void sendMessage(String message) {
        System.out.println("SMS");
    }
}

✔️ Abstraction: Message

public abstract class Message {
    private MessageSender messageSender; //bridge between abstract, implementation

    protected Message(MessageSender messageSender) {
        this.messageSender = messageSender;
    }

    public abstract void send(String message);
}

✔️ RefinedAbstraction: TextMessage, EncryptedMessage

public class TextMessage extends Message{
    protected TextMessage(MessageSender messageSender) {
        super(messageSender);
    }

    @Override
    public void send(String message) {
        System.out.println("text message");
    }
}

public class EncryptedMessage extends Message{
    protected EncryptedMessage(MessageSender messageSender) {
        super(messageSender);
    }

    @Override
    public void send(String message) {
        System.out.println("EncryptedMessage");
    }
}

✔️ Client code

• Abstraction and Implementation을 이리저리 갈아끼울 수 있음

public class App {
    public static void main(String[] args) {
        MessageSender email = new EmailSender();
        MessageSender sms = new SMSSender();

        Message textEmail = new TextMessage(email);
        Message encryptedEmail = new EncryptedMessage(email);
        Message textSMS = new TextMessage(sms);
        Message encryptedSMS = new EncryptedMessage(sms);
    }
}

👍🏻

• 👍🏻 decouple abstract and implementation
• can modify abstract code without modifying concrete implementation
• 👉🏻 open closed principle

🛠️

• JDBC allows you to use driver(implemtation)
• but change of driver will not change code, database(abstract)
