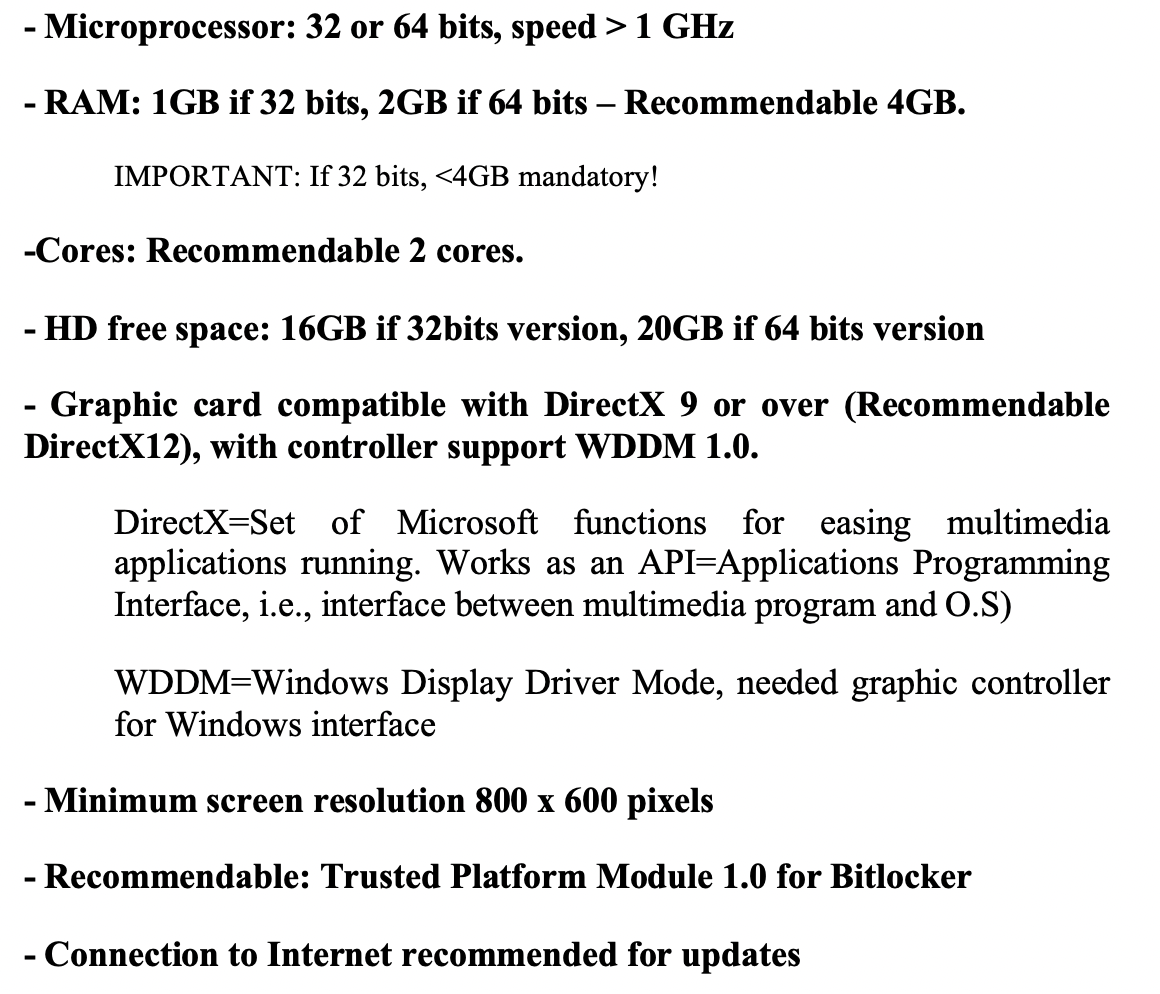

6.4 Windows 10 Hardware requirements

• These requirements are mandatory for Windows 10 in the the RM
• if we do it in a VM, VM should comply these requirements.

✅ For windows 10 we need…

☑️ Microprocessor, clock

• 32 or 64 bits, speed > GHz

☑️ RAM

• ⭐️ in systems, we say Windows 10 is 1 2 4 system
• 1GB would work for 32 bits
• 2GB would work for 64 bits
• 4GB is recommended

☑️ Cores

• recommendable 2 real cores

☑️ Harddisk free space

• 1️⃣ ⭐️ we say Windows 10 is 16 20 +5
• 16GB minimum if you want 32 bits

• 20GB minimum if you want 64 bits

• 2️⃣ + 5GB in whatever situation is recommended, for updates
• so, for 32 bits 16+5

• for 64 bits 20+5

• 3️⃣ and if you want to keep previous files, files from past versions
• round up to 10's
• so, for 32 bits 21GB ➡️ 30GB
• for 64 bits 25GB ➡️ 30GB

• 👥 So many ppl say windows 10 need 30GB, 30GB, 30GB....

• ❓ Why do you do +5?
• for updates
• ❓ Why do you round up the HD?
• for keeping previous files

☑️ Graphics card with Direct X and WDDM

✔️ Direct X

• Direct X: needs an API called Direct X
• 🛠️ used for multimedia

- API: programming interface
- program to use for programming other things

❓ Why does error `Direct X missing`
- can I boot windows?
- yes

- can I play video, music?
- no, cannot play multimedia

• 💊 You can download Direct X API and install it

❓ What if I do not have permission to install Direct X?

• then you cannot watch videos

✔️ WDDM

• Windows Display Driver Mode
• for better graphic performance

☑️ Minimum resolutin

• VGA
• in VMs, windows can run with VGA
• windows can work with low resolution
• 800x600 pixels

☑️ Recommendable

• 1️⃣ TPM is recommendable in Windows 10
• 2️⃣ connection to internet is recommendable for downloading Windows 10
• To download windows 10, you can/do not need connection to internet
• but better to download, install with Windows 10

✅

✅

✅

✅

1️⃣

2️⃣

3️⃣

4️⃣

• 1️⃣
• 2️⃣
• 3️⃣
• 4️⃣ 👍🏻 👎🏻

⭐️⭐️⭐️ EXAM ⭐️⭐️⭐️
❓
👉🏻
